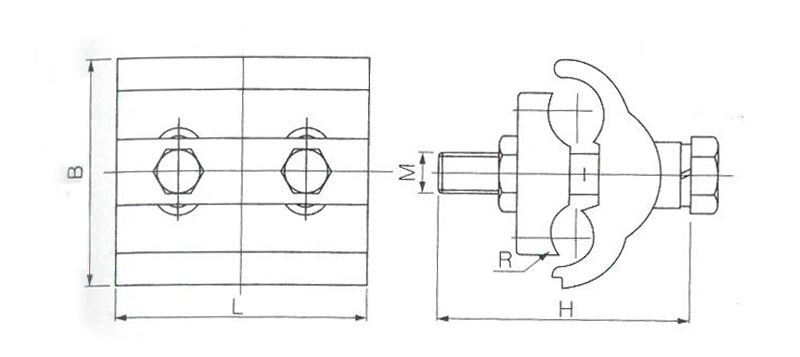

| 产品型号 | 适用导线 | 尺寸（mm） | 螺栓 | |||||
| AL | Cu | L | B | H | R | M | 数量 | |
| CAPG-A1 | 16-70 | 6-50 | 25 | 42 | 40 | 7/5 | 8 | 1 |
| CAPG-A2 | 25-150 | 10-95 | 30 | 46 | 50 | 7.5/6 | 8 | 1 |
| CAPG-B1 | 16-70 | 6-50 | 40 | 42 | 45 | 7/5 | 8 | 2 |
| CAPG-B2 | 25-150 | 10-95 | 50 | 46 | 50 | 7.5/6 | 8 | 2 |
| CAPG-B3 | 35-240 | 16-185 | 62 | 58 | 60 | 10/9 | 10 | 2 |
| CAPG-C1 | 16-70 | 6-50 | 60 | 42 | 45 | 7/5 | 8 | 3 |
| CAPG-C2 | 16-150 | 10-95 | 70 | 46 | 50 | 7.5/6 | 8 | 3 |
| CAPG-C3 | 35-240 | 25-185 | 90 | 58 | 60 | 10/9 | 10 | 3 |
| CAPG-C4 | 35-300 | 35-240 | 105 | 65 | 70 | 13/10 | 10 | 3 |
| 产品型号 | 适用导线 | 尺寸（mm） | 螺栓 | ||||
| AL | L | B | H | R | M | 数量 | |
| APG-A1 | 16-70 | 25 | 42 | 40 | 6 | 8 | 1 |
| APG-A2 | 25-150 | 30 | 46 | 50 | 7.5 | 8 | 1 |
| APG-B1 | 16-70 | 40 | 42 | 45 | 6 | 8 | 2 |
| APG-B2 | 25-150 | 50 | 46 | 50 | 7.5 | 8 | 2 |
| APG-B3 | 35-240 | 62 | 58 | 60 | 9.5 | 10 | 2 |
| APG-C1 | 16-70 | 60 | 42 | 45 | 6 | 8 | 3 |
| APG-C2 | 16-150 | 70 | 46 | 50 | 7.5 | 8 | 3 |
| APG-C3 | 35-240 | 90 | 58 | 60 | 11.5 | 10 | 3 |
| APG-C4 | 35-300 | 105 | 65 | 70 | 4 | 10 | 3 |
